Product Description

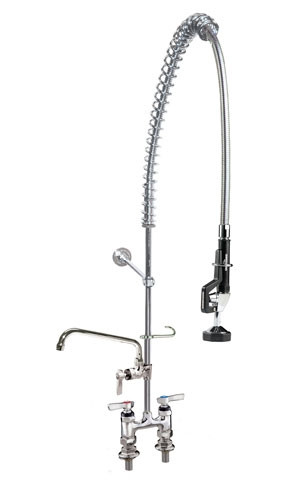

Encore (CHG) - KL56-1000-AF4 - Encore¨ Pre-Rinse Assembly, deck mount, 4" OC, with 12" add-on faucet, lever handles, 1/4-turn full volume compression valves
Furnished with 1/2" (13mm) NPS male inlets
Flexible hose with spring
Built-in check valves
SANIGUARD® treated grip and handles
Specifications Sheet (PDF)
Flexible hose with spring
Built-in check valves
SANIGUARD® treated grip and handles
Specifications Sheet (PDF)
Base Faucet Style: Elevated Bridge , Deck
Base Faucet Material: Chrome Plated Brass
Add-On Faucet: 305 mm, 12 in
Inlet Center: 102 mm, 4 in
Supply Inlet Size: 13 mm, 1/2 in
Valve Type: Compression
Handle Style: Standard Lever
Outer Spring Material: Chrome Plated Steel
Riser Length: 457 mm, 18 in
Temperature Mixing Valve: Optional
Wall Bracket: Yes
Base Faucet Material: Chrome Plated Brass
Add-On Faucet: 305 mm, 12 in
Inlet Center: 102 mm, 4 in
Supply Inlet Size: 13 mm, 1/2 in
Valve Type: Compression
Handle Style: Standard Lever
Outer Spring Material: Chrome Plated Steel
Riser Length: 457 mm, 18 in
Temperature Mixing Valve: Optional
Wall Bracket: Yes
