Product Description

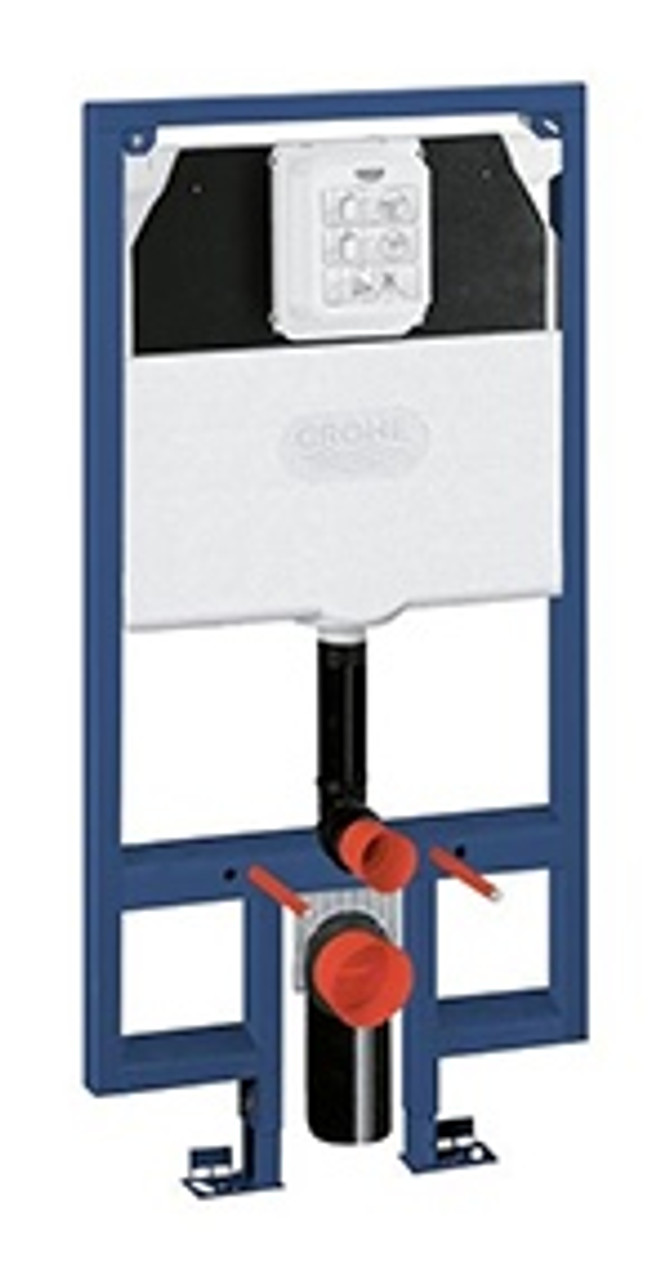

Grohe - 38996000 Rapid SL Wall Carrier for Toilet
Shop our large inventory of Grohe replacement parts below!
1. Threaded Screw for Uniset (2 pcs) - 4276400M
2. WC Inlet and Outlet Connecting Set - 37311K00
2.1. Bath Faucet Fastener - 43511SH0
2.2. Connector - 37119000
3. Support for Outlet - 42243000
4. Filling Valve - 43991000
4.1. Valve Support - 43995000
4.2. Lever - 43734000
4.2.1. Seal - 4377000M
4.3. Valve Head - 43536000
4.4. Membrane - 4375800M
4.5. Screw Cap - 43735000
4.6. Valve Float (5 pcs) - 4379100M
5. Connection Tube - 42233000
5.1. O-ring - 0319100M
6. Cartridge - 42385000
7. AV1 Complete with Pipe Extension - 42320000
7.1. Extension for Overflow Pipe - 42313000
7.2. Pneumatic Hose - 42319000
7.3. Seal - 42310000
8. Valve seat for Italian Flushing Cistern - 42316000
9. Noise Protection Kit - 37131000*
Includes 2 fixing bolts for the toilet installation
Pneumatic discharge valve with stop feature
24 5/8" Overall width
Maintenance accessible through front plate
Pre-assembled powder coated steel frame with in-wall tank
Bowl rim height adjustments 15" to 19"
Dual flush - .8 gpf and 1.6 gpf (3L and 6L)
Tank insulated to prevent condensation
For vertical actuation plates only
Low noise operation - meets strict European noise (DIN) standards
Actuation plate sold separately
