Product Description
provides a vandal resistant, walled mounted, no touch solution that
promotes better hygiene and energy savings.
Using Hydrotek’s patented goose neck design, the 6700C Series faucet
is ideal in clinics, hospitals, and manufacturing facilities for scrub
stations.
- ADA Compliant. Meets all barrier free codes
- Conserves water and energy
- Easily installed in new or retrofit applications
- Competitively priced for today’s commercial market
- Promotes cleanliness & hygiene
- Proven Hydrotek craftsmanship and reliability
Chrome plated, solid brass construction.
Wall mountable, waterproof control box with armored, vandal resistant control and power cables.
Preset/adjustable sensor ranges 6″ – 30″ for various installation requirements.
Standard automatic time-out feature. Preset at 30 and adjustable to 0, 15, 60 seconds. Prevents accidental sink overflow.
Shut-off delay is adjustable from 1 second (preset) to 8 seconds.
Includes in-line filters with clean-out trap to reduce maintenance costs.
Standard 6″ gooseneck spout and 2.0 GPM Laminar Flow Control.
Single-hole, wall/splash mounting.
All parts are field replaceable to ensure quick and easy repair.
Same faucet is field switchable to/from AC Powered or Battery Powered.
Slow closing, piston-operated solenoid valve provides reliable and smooth operation without water hammer.
Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloromines or ammonia.
Control module automatically performs a unique self-check of all electrical components.
No-touch system enhances hygiene in medical, institutional, food service industries, etc.
For the AC with DC Backup version, the battery backup picks up in the event of a power outage, ensuring that the faucet is always ready to go.

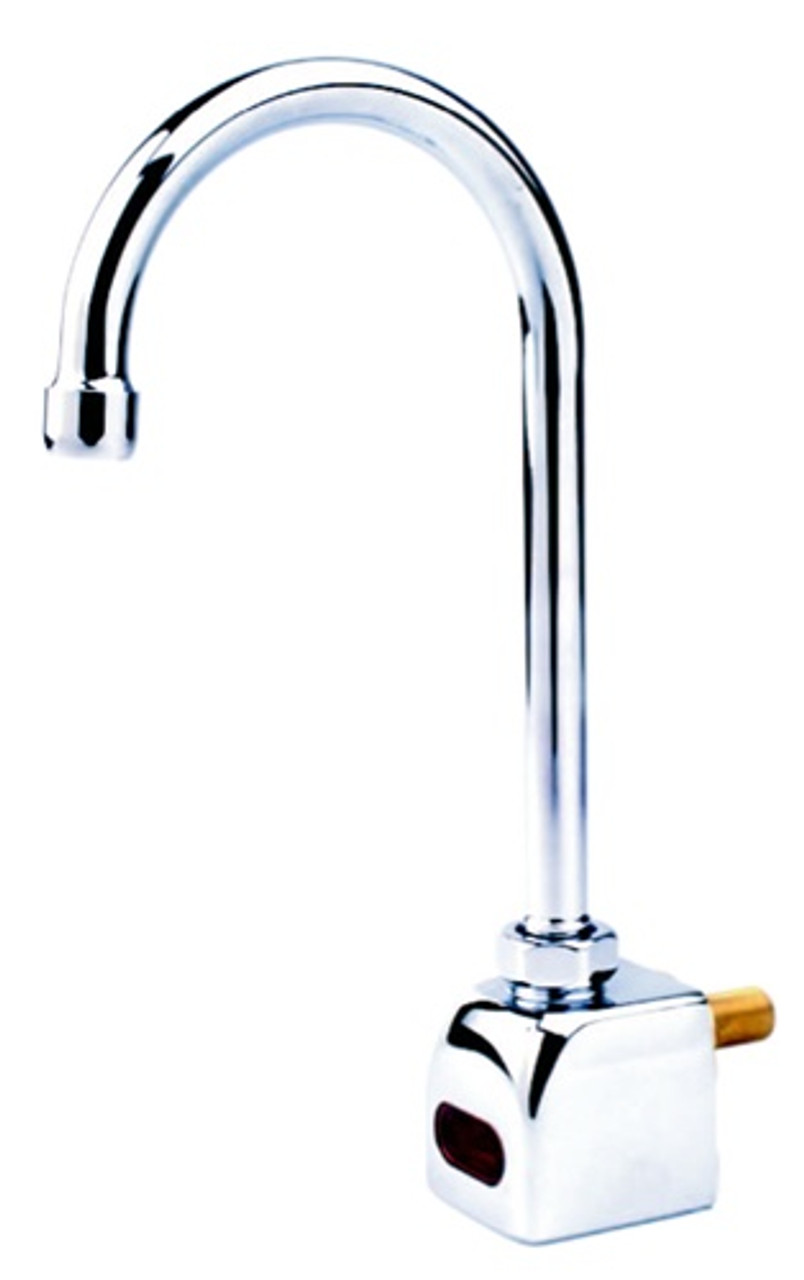

H-6700C AC Powered, non-mixing, Automatic Gooseneck Faucet:
Single-hole wall/splash mount, gooseneck,
non-mixing automatic faucet with chrome plated, solid brass
construction. Includes faucet, sensor assembly with armored/vandal
resistant control cable, wall mountable/vandal and water resistant
control box, 6” gooseneck spout with 2.0 GPM Laminar flow control, 6V
DC, slow-closing solenoid valve, plug-in power adapter with
armored/vandal resistant output cable, 3/8” braided S.S. supply line,
in-line filter and mounting hardware. Faucet unit is field convertible
to battery operation with addition of optional battery holder and four
(4) AA batteries. Features include: ACCU-SENSE preset/adjustable Sensor
Beam Angle, preset/adjustable sensor range, preset automatic time-out
for 0 seconds but adjustable to 15, 30, or 60 seconds, preset shut-off
delay for 1 second but adjustable up to 8 seconds.
HB-6700C Wall Mount Battery Operated, Non-Mixing, Automatic Gooseneck Faucet:
Single-hole wall/splash mount, non-mixing,
automatic gooseneck faucet with chrome plated, solid brass construction.
Includes faucet, sensor assembly with armored/vandal resistant control
cable, wall mountable/vandal and water resistant control box, 2.0 GPM
Laminar flow control as standard, 6V DC, slow-closing solenoid valve,
battery holder with (4) AA Batteries, 3/8” copper supply tube, in-line
filter and mounting hardware. Faucet is field convertible to AC powered
operation with addition of optional Plug-in Power Adapter. Features
include: ACCU-SENSE preset/adjustable Sensor Beam Angle,
preset/adjustable sensor range, preset automatic time-out for 0 seconds
but adjustable to 0, 15, 30, or 60 seconds, preset shut-off delay for 1
second but adjustable up to 8 seconds.
