Product Description

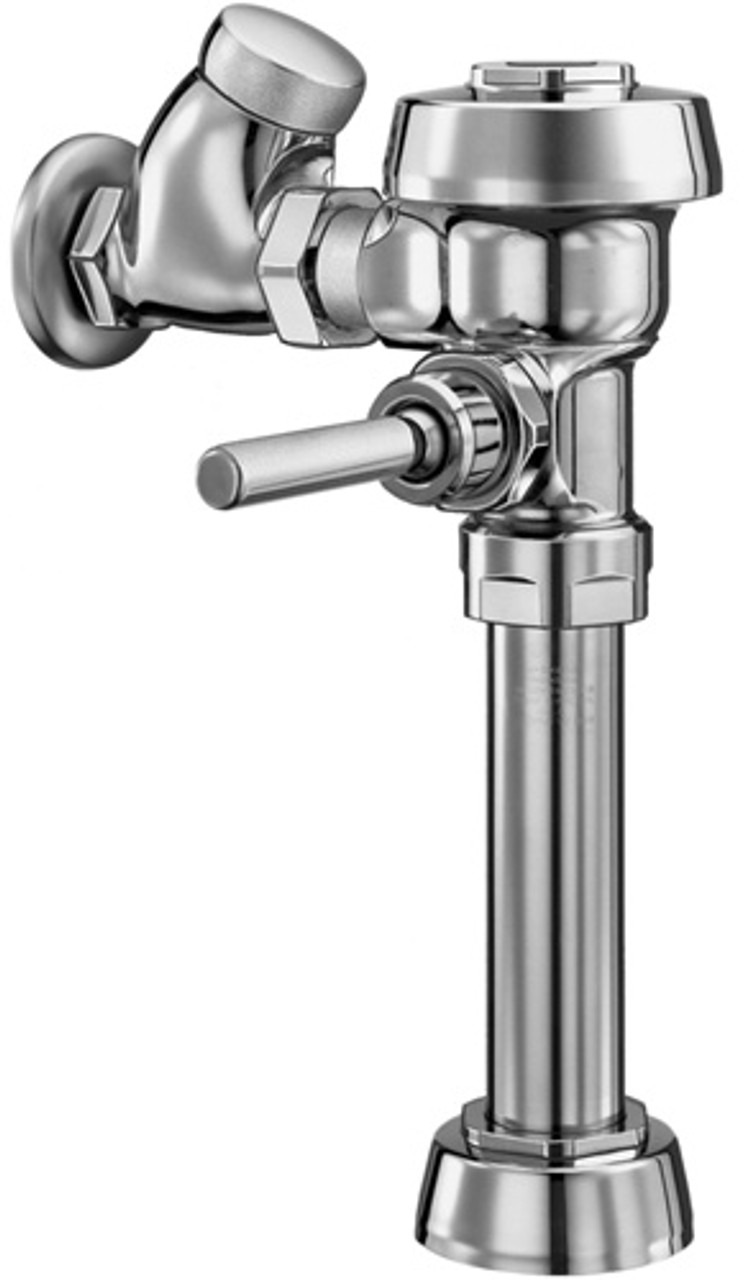

Sloan 3910017 ROYAL 100-1.6
Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer
Low Consumption (1.6 gpf/6.0 Lpf)
PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
1” I.P.S. Screwdriver Bak-Chek™ Straight Stop
Free Spinning Vandal Resistant Stop Cap
Ground Joint Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with
One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1½” Top Spud
Sweat Solder Adapter and Cast Set Screw Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID™ Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX™ Rubber Compound for Chloramine Resistance
Low Consumption (1.6 gpf/6.0 Lpf)
PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
1” I.P.S. Screwdriver Bak-Chek™ Straight Stop
Free Spinning Vandal Resistant Stop Cap
Ground Joint Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with
One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1½” Top Spud
Sweat Solder Adapter and Cast Set Screw Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID™ Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX™ Rubber Compound for Chloramine Resistance
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037.
