Product Description

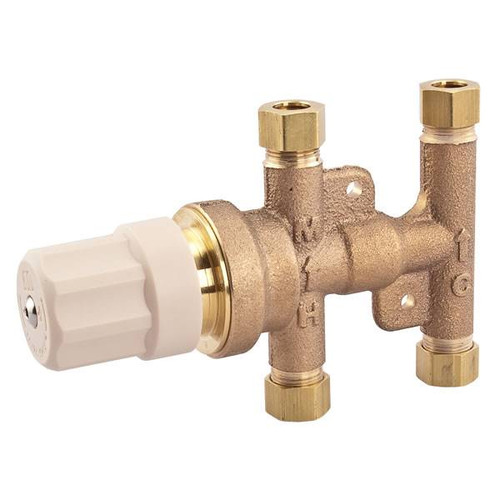

The USG-B-M2 Under Sink Guardian? 3⁄8" (10mm) compression and Quick-Connect fitting thermostatic mixing valves maintain and limit hot water to desired selectable temperature between 80?F and 120?F (27?C and 49?C) with flow rates as low as 0.5 gpm (1.9 lpm) and as high as 2.25 gpm (8.5 lpm). The mixing valve is listed to ASSE Standard 1070 for single fixture applications and IAPMO cUPC. The superior flow characteristics of these valves provide temperature control with low pressure drop. As an added feature, the USG-B-M2 incorporates dual check valves to protect against cross-flow and integral screens to filter out debris.
Features:
? Installs easily between the stop valves and faucet
? Includes tamper resistant locking nut to prevent accidental mis-adjustment
? Built-in check valves prevent migration of hot water to cold and cold water to hot water piping
? Provided with cap for three port application
? Integral strainer with 40 mesh stainless steel screens to filter out debris
Features:
? Installs easily between the stop valves and faucet
? Includes tamper resistant locking nut to prevent accidental mis-adjustment
? Built-in check valves prevent migration of hot water to cold and cold water to hot water piping
? Provided with cap for three port application
? Integral strainer with 40 mesh stainless steel screens to filter out debris
Product Videos
Custom Field
Please Note This item is temporarily unavailable.
