Product Description

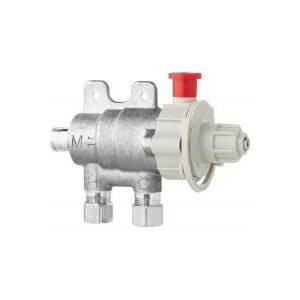

Chicago Faucets 131-FMABRCF ECAST® Thermostatic Mixing Valve
Installs between the stop valves and the faucet for single or multiple faucet installations
Includes Pipe Flush Mode for high temperature system flushing used in thermal disinfection
Adjustment cap with locking feature
Integral inlet check valves to protect against cross-flow
Thermostatic wax element; thermostat controls both hot and cold water
Brass body construction with corrosion-resistant internal components, includes plastic wall bracket
Standard 3/8" compression inlets and outlet
Minimum supply pressure: 30psi (207 kPa); Hot inlet temperature: 100°F-180°F (38°C-82°)
Outlet water temperature will be less than hot water inlet temperature
Minimum Flow Rate: 0.35 gpm (@ min. 20 psi)
Maximum Flow Rate: 4.6 gpm (@ min. 125 psi)
Temperature Out: 80°F to 120°F (27°C to 49°C)
Rough Chrome Finish
ECAST® construction with equal to or less than 0.25% lead content by weighted average
Weight: 1.242lbs
Includes Pipe Flush Mode for high temperature system flushing used in thermal disinfection
Adjustment cap with locking feature
Integral inlet check valves to protect against cross-flow
Thermostatic wax element; thermostat controls both hot and cold water
Brass body construction with corrosion-resistant internal components, includes plastic wall bracket
Standard 3/8" compression inlets and outlet
Minimum supply pressure: 30psi (207 kPa); Hot inlet temperature: 100°F-180°F (38°C-82°)
Outlet water temperature will be less than hot water inlet temperature
Minimum Flow Rate: 0.35 gpm (@ min. 20 psi)
Maximum Flow Rate: 4.6 gpm (@ min. 125 psi)
Temperature Out: 80°F to 120°F (27°C to 49°C)
Rough Chrome Finish
ECAST® construction with equal to or less than 0.25% lead content by weighted average
Weight: 1.242lbs
