Product Description

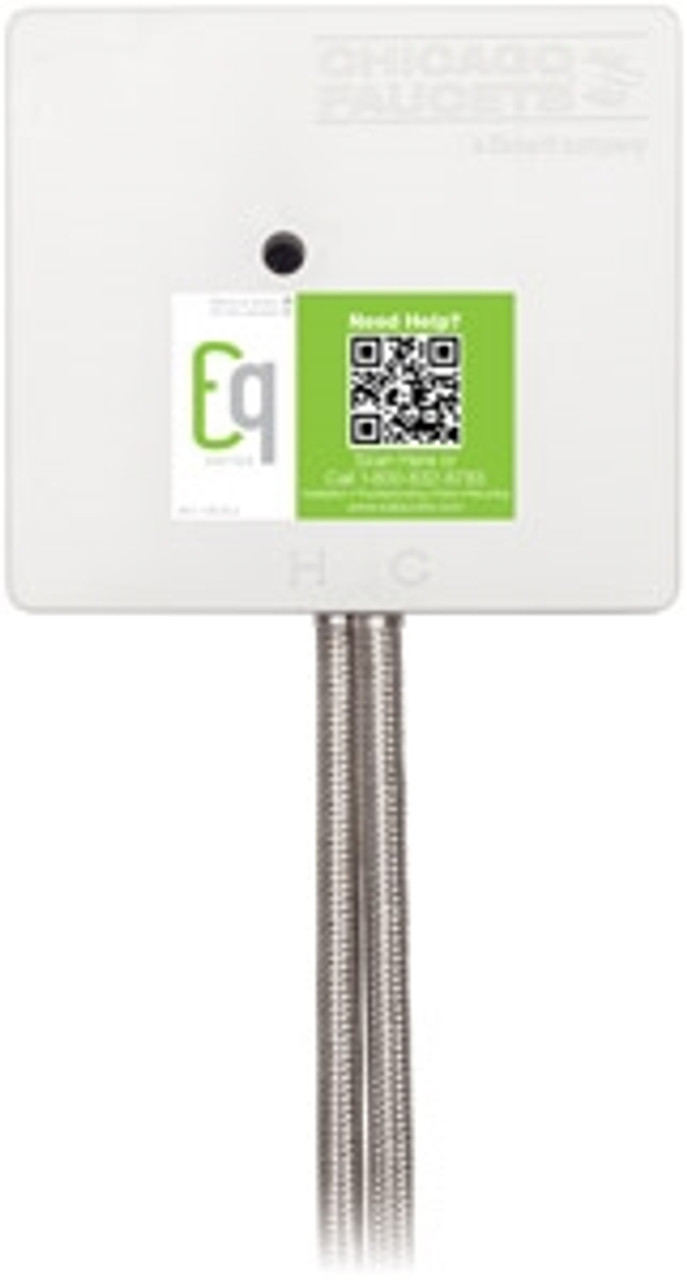

Chicago Faucets EQ-12KJKABNF Control Box Assy Eq Ir Batt Ds Mech
With Concealed Mechanical Mixing Valve Design
Dual Supply for Hot and Cold Water Service
Operating static pressure: 20-125 PSI (138-862 kPa)
Minimum static pressure for mixing: 30 PSI (207 kPa)
Cold water inlet temperature range: 39-80?F (4-27?C)
Hot water inlet temperature range: 120-180?F (49-82?C)
Mixed water temperature range: up to 180?F (82?C)
Adjustable temperature control
Integral check valves for cross-flow protection
Powered by 4 "AA" Alkaline Batteries (Included)
Combine with EQ Spout assemblies (sold seperately)
Includes integrated control box: housing, solenoid valve, power source, mixing element, hose(s) to supply stop(s); mounting hardware
Installation should be done in accordance with local plumbing codes.
ECAST? construction with equal to or less than 0.25% lead content by weighted average
Weight: 2.114lbs
Package Dimensions: 15.00"L x 7.00"W x 4.00"H
Dual Supply for Hot and Cold Water Service
Operating static pressure: 20-125 PSI (138-862 kPa)
Minimum static pressure for mixing: 30 PSI (207 kPa)
Cold water inlet temperature range: 39-80?F (4-27?C)
Hot water inlet temperature range: 120-180?F (49-82?C)
Mixed water temperature range: up to 180?F (82?C)
Adjustable temperature control
Integral check valves for cross-flow protection
Powered by 4 "AA" Alkaline Batteries (Included)
Combine with EQ Spout assemblies (sold seperately)
Includes integrated control box: housing, solenoid valve, power source, mixing element, hose(s) to supply stop(s); mounting hardware
Installation should be done in accordance with local plumbing codes.
ECAST? construction with equal to or less than 0.25% lead content by weighted average
Weight: 2.114lbs
Package Dimensions: 15.00"L x 7.00"W x 4.00"H
